High Speed Rotary Tablet Press with 680400 PCS/H Capacity, 24h Online Support, and One Year Warranty
Gedetailleerde productomschrijving
| Model nr.: |
GZPK730-81 |
Machinemateriaal: |
Roestvrij staal |
| Productiecapaciteit: |
680400 PCS/H |
Hoofddruk: |
100 kN |
| Onderdruk: |
100 kN |
Tabletdiameter: |
11 mm |
| Vullingsdiepte: |
15 mm |
Tablet dikte: |
6 mm |
| Hoofdmotor: |
15 kW |
Max torentje snelheid: |
70 r/min |
| Totale maat: |
1700*1600*1900 mm |
Machinegewicht: |
4800 kg |
| Gereedschapsnorm: |
BBS |
Smeersysteem: |
Automatisch Smeringssysteem |
| HMI -schermformaat: |
10 inch |
| Markeren: |
680400 PCS/H Rotary Tablet Press, 24h Online Support High Speed Tablet Press, One Year Warranty Pill Press Machine |

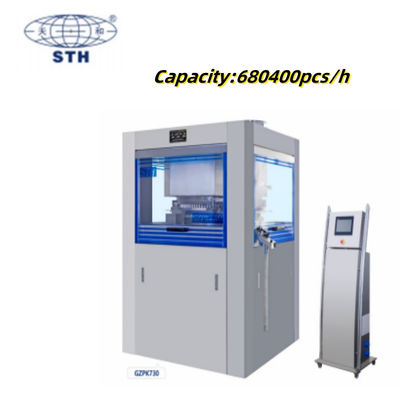

GZPK730 Series High Speed Rotary Tablet Press Machine
Product Description
Application: This double-sided rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.
Key Features
- High-speed operation with multiple punches and double press rollers for mass production
- Stainless steel construction with fully enclosed housing and hardened turret surface for durability and GMP compliance
- Advanced tableting system with twice compression forming for reliable performance and consistent tablet weight
- Fully enclosed compression compartment with transparent glass to prevent contamination
- Double impeller force feeder improves granule flow and filling precision
- Double-side lifting tooling track structure for balanced stress and wear resistance
- High-performance electrical control system for precise operation
- Automatic central lubrication system extends machine lifespan
Note: The GZPK730 model features an advanced operation system with tablet weight control, allowing easy parameter adjustment without handwheels. It records all process parameters for each production batch and includes CFR 21 part 11 electronic record functionality (optional).
Technical Specifications
| Model | GZPK-51 | GZPK-63 | GZPK-75 | GZPK-81 |
| Number of Station | 51 | 63 | 75 | 81 |
| Tooling Standard | D | B | BB | BBS |
| Max Main Pressure (KN) | 100 |
| Max Tablet Diameter (mm) | 25 | 18 | 13 | 13 |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 |
| Max Production Capacity (pcs/h) | 428,400 | 529,200 | 630,000 | 680,000 |
| Motor Power (KW) | 11 |
| Machine Weight (kg) | 4800 |
Detailed Features
HMI Touch Screen (10 inch Delta)
- Displays pressure value for each punch
- Automatic adjustment of main pressure, pre-pressure and tablet weight
- 3-level management authority with product formula management
- Optional CFR 21 part 11 electronic record functionality
- Industrial computer with independent electrical cabinet
Electrical System
- International brand components (Delta)
- Separated electrical control cabinet
- 15KW main motor
Automatic Lubrication System
- Lubrication oil for punches and tracks
- Grease oil for shafts and bearings

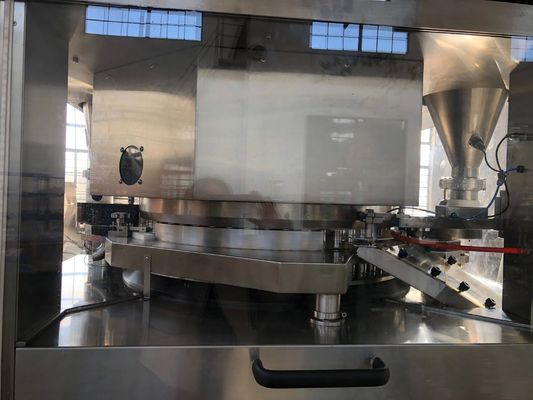

Turret Structure
- Three-part structure using HT300 & 2Cr13 materials
- Hardened surface layer for wear resistance
- Upper punch with oil protect ring and dust proof ring
- Lower punch with dust proof ring
- Fully enclosed working turret
- Double-side lifting tooling track structure
Force Feeder System
- Double impeller type force feeder improves granule flow and filling precision
- Stainless steel hopper (SS316L) with powder level sensor
- Adjustable powder flow valve
- Food grade silicone connecting sleeve
Safety & Control Features
- Upper & lower punch tightness protection sensors
- Servo motor controlled pressure for consistent tablet weight
- Tablet rejection system
- Comprehensive alarm system
Tooling Options
- TSM-Tooling standard
- Custom punches and dies available (round, irregular, concave, bevel edged, etc.)
- Material options: S7/D2, DC53, 6CrW2Si
Packaging & Shipping
- Export-standard wooden packaging included
- 15-45 working days delivery time
- Multiple transportation options: SEA, AIR, EXPRESS
