High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry

China High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry leverancier
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry leverancier High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry leverancier High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry leverancier High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry leverancier High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry leverancier High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry leverancier

Grote Afbeelding :  High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry

Productdetails:

Certificering: CE, ISO,GMP,EAC

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Prijs: 90000
Contact
Gedetailleerde productomschrijving
Model nr.: GZPK730-75 Machinemateriaal: Roestvrij staal
Productiecapaciteit: 63000 pc's/h Gereedschapsnorm: BB
Hoofddruk: 100 kN Onderdruk: 100 kN
Tabletdiameter: 13 mm Vullingsdiepte: 15 mm
Tablet dikte: 6 mm Hoofdmotor: 15 kW
Max torentje snelheid: 70 r/min Totale maat: 1700*1600*1900 mm
Machinegewicht: 4800 kg HMI -schermformaat: 10 inch
Torentje materiaal: HT300 & 2CR13
Markeren:

630000 PCS/H Rotary Tablet Press

,

15kW Motor Tablet Press Machine

,

Pharmaceutical Rotary Tablet Press

GZPK730 Series High Speed Rotary Tablet Press Machine
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 0 High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 1
Application
This double-sided rotary tablet press converts granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.
Key Features
  • High-speed operation with multiple punches and double press rollers for mass production
  • Stainless steel construction with fully enclosed housing and hardened turret surface for GMP compliance
  • Advanced tableting system with twice compression forming for reliable performance and consistent tablet weight
  • Transparent glass enclosure for contamination-free compression compartment
  • Double impeller force feeder improves granule flow and filling precision
  • Double-side lifting tooling track for balanced stress and wear resistance
  • High-performance electrical control system for precise operation
  • Automatic central lubrication system extends machine lifespan
Special Notes
GZPK730 Model: Features advanced operation system with tablet weight control, allowing easy parameter adjustment without handwheels. Includes process parameter recording for production batch control.
Technical Specifications
Model GZPK-51 GZPK-63 GZPK-75 GZPK-81
Number of Station 51 63 75 81
Tooling Standard D B BB BBS
Max Tablet Diameter (mm) 25 (Round)
25 (Irregular)		 18
19		 13
16		 13
16
Max Filling Depth (mm) 20 18 15 15
Max Production Capacity (pcs/h) 428,400 529,200 630,000 680,000
Motor Power (KW) 11
Dimensions (mm) 1700×1600×1900
Weight (kg) 4800
Detailed Features
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 2
HMI Touch Screen (10 inch Delta)
  • Displays pressure value for each punch
  • Automatic adjustment of main pressure, pre-pressure and tablet weight
  • 3-level management authority with product formula management
  • Optional CFR 21 part 11 electronic record and signature function
  • Upgraded electrical system with industrial computer and separate cabinet
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 3
Automatic Lubrication System
  • Separate lubrication for punches/tracks (oil) and shafts/bearings (grease)
  • Extends component lifespan and maintains optimal performance
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 4

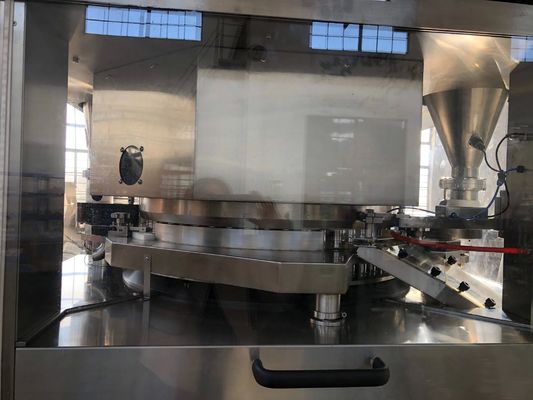

Turret Structure
  • Three-part construction using HT300 & 2Cr13 materials
  • Hardened surface layer for wear resistance
  • Upper punch with oil protect ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret
  • Double-side lifting tooling track for balanced stress
Packaging & Shipping
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 5
  • Wooden packaging meets international export standards
  • Free packaging included
  • Delivery within 15-45 working days
  • Multiple shipping options: SEA, AIR, and EXPRESS
Certifications
High Speed Rotary Tablet Press Machine with 630000 PCS/H Capacity 15kW Motor for Pharmaceutical Industry 6
