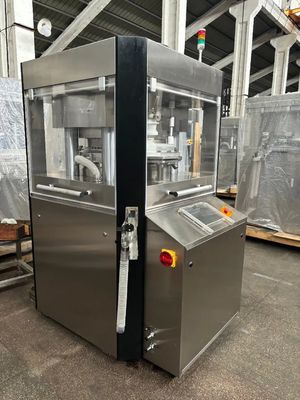

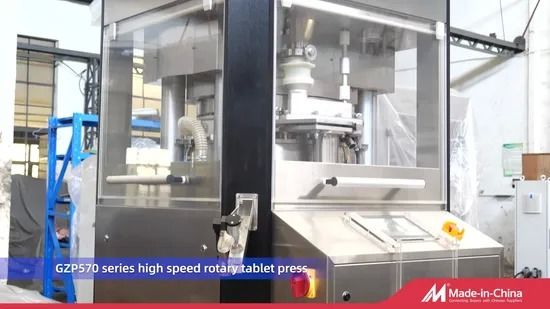

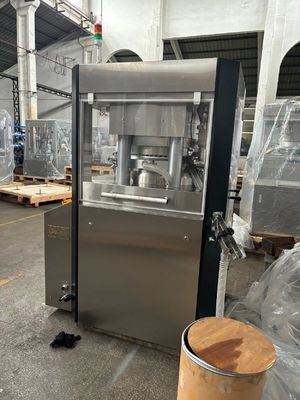

Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure

China Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure leverancier
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure leverancier Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure leverancier Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure leverancier Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure leverancier Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure leverancier Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure leverancier

Grote Afbeelding :  Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure

Productdetails:

Certificering: CE, GMP, ISO, EAC

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Prijs: 60000
Contact
Gedetailleerde productomschrijving
Model nr.: GZP570 (51) Machinemateriaal: Koolstofstaal, roestvrij staal
Nummerstations: 51 Max hoofddruk: 100 kN
Max pre-druk: 40 kN Max productiecapaciteit: 367200 PCS/H
Motorvermogen: 11 kW Maximale tabletdiameter: 18 mm (ronde), 19 mm (onregelmatig)
Max vuldiepte: 18 mm Max tablet dikte: 8 mm
Max torentje snelheid: 60 r/min Totale maat: 1420*1200*1850 mm
Machinegewicht: 3500 kg Gereedschapsnorm: B
Torentje materiaal: HT300 & 2CR13
Markeren:

51 Stations Rotary Tablet Press

,

100 kN Main Pressure High Speed Tablet Press

,

40 kN Pre-Pressure Tablet Compression Machine

GZP570 (51) High Speed Rotary Tablet Press Machine
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 0 Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 1
Application
This double-side rotary tablet press machine can press granular materials into round shape tablets, irregular tablets, or double-side engraved tablets. It is primarily used in pharmaceutical, chemical, foodstuff, and electronic industries.
Key Features
  • Advanced pressure system with double pressure forming (main pressure and pre-pressure) for precise tablet weight and hardness control
  • High turret rotation speed (103m/min linear speed) with maximum output of 450,000 tablets per hour
  • Pressure monitoring system with emergency stop function when exceeding set values
  • Automatic lubrication system with adjustable frequency and timing via touch screen
  • Programmable controller with color touch screen interface for easy operation and monitoring
  • Comprehensive protection functions including low oil level, pressure overload, and door open alerts
  • Stable forced feeding device with double impeller feeding plate for consistent material flow
  • High-quality materials including special formula copper track and precision-cast components
  • Precision machining of key components ensures operational stability
  • High-strength frame structure with 100 KN main pressure and 40 KN pre-pressure
  • Internal turret lubrication system reduces wear on punch rods
Technical Specifications
Model GZPK-51
Number Stations 51
Tooling Standard B
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) Round Tablet: 18
Irregular Tablet: 19
Max Filling Depth (mm) 18
Max Tablet Thickness (mm) 8
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 367,200
Motor Power (kw) 11
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 2

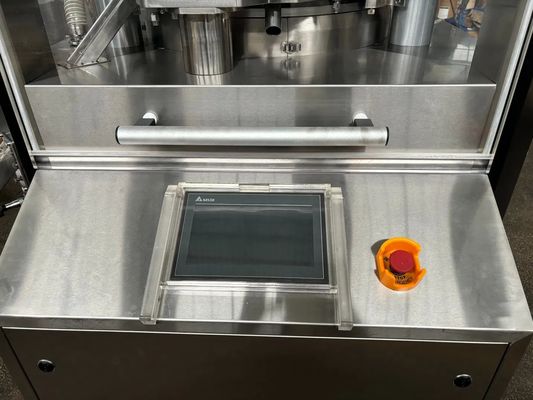

Delta 10 inch Color Touch Screen
  • Displays real-time working pressure, rotating speed, output counter
  • 3-level management authority
  • Electronic signature CFR21
  • Remote access capability
  • Single value pressure display
  • Formula management system
  • Handwheel-free operation with rich interface
Operating Table
Main pressure, pre-pressure and filling volume can be adjusted automatically via touch screen without handwheel control.
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 3
Electrical System
Utilizes international brand components including Delta and Schneider for reliable performance.
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 4
Main Motor
  • Powerful 11kw ABB motor
  • High-precision reducer for stable torque output
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 5
Automatic Lubrication System
Dual lubrication system with oil for punches and tracks, and grease for shafts and bearings.
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 6
Turret Structure
  • Three-part structure design
  • HT300 & 2Cr13 materials with hardened wear-resistant surface
  • Upper punch with oil catch ring and dust proof ring
  • Lower punch with dust proof ring
  • Fully enclosed working turret
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 7
Force Feeder System
Stable direct-mounted feeding device with double blade wheel feeding disc for consistent material flow and prevention of particle separation.
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 8
Force Feeder Special Hopper
Equipped with rotary valve to precisely control powder flow.
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 9

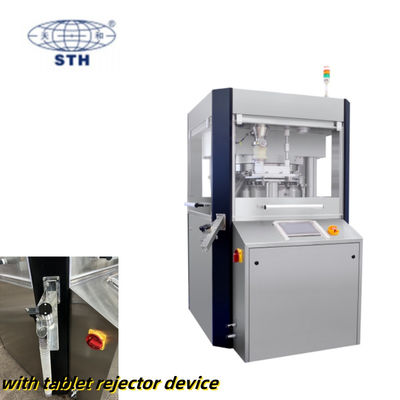

Tablet Rejection System
  • Group waste removal function
  • Startup rejection capability
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 10
Punches & Dies
Customizable according to customer requirements:
  • TSM-Tooling standard
  • Various types available: round, irregular, shallow concave, deep concave, bevel edged, detachable, single tipped, multi tipped, chrome plated or carbide
  • Material options: S7/D2, DC53, 6CrW2Si
Packaging & Shipping
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 11
  • Wooden packaging meets export standards
  • Free packaging included
  • Delivery time: 15-45 working days
  • Transportation options: SEA, AIR, and EXPRESS
After Sales Service
  • Installation services available with all new machine purchases
  • Technical support for installation, debugging, and operation
  • Engineer dispatch to customer factory for setup and training
  • Comprehensive support including quality service and competitive pricing
Certifications
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 12

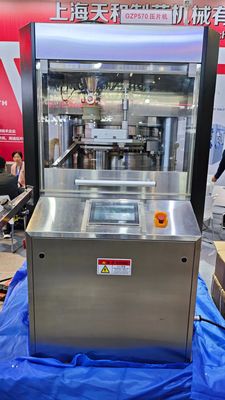

Our Exhibition
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 13
Samples
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 14
Company Profile
Fully Automatic High Speed Rotary Tablet Press with 51 Stations 100 kN Main Pressure and 40 kN Pre-Pressure 15
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is the innovative leading manufacturer and professional total-solution supplier for pharmaceutical processing machines, packaging equipments and related service in Pharmaceutical & Food industry over 30 years, exporting to over 70 countries.
As a high-technology enterprise, we handle all processes from casting to metal machining and general assembly. We are dedicated to quality control and satisfactory service, providing the most suitable products based on detailed URS analysis and mutual communication.
All machines can be customized to customer requirements, with successful experience in designing machines according to specific needs. Our machines incorporate advanced global technology, featuring Omron PLC control, compact structure, stable performance, high filling accuracy, and easy operation and maintenance.
