41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power

China 41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power leverancier
41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power leverancier 41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power leverancier 41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power leverancier 41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power leverancier 41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power leverancier 41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power leverancier

Grote Afbeelding :  41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power

Productdetails:

Certificering: CE, GMP, ISO, EAC

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Prijs: 60000
Contact
Gedetailleerde productomschrijving
Model nr.: GZP570 (41) Machinemateriaal: Koolstofstaal, roestvrij staal
Nummerstations: 41 Max hoofddruk: 100kn
Max pre-druk: 40kn Max productiecapaciteit: 295200pcs/h
Motorvermogen: 11 kW Maximale tabletdiameter: 25 mm
Max vuldiepte: 20 mm Max tablet dikte: 10 mm
Max torentje snelheid: 60r/min Totale maat: 1420*1200*1850 mm
Machinegewicht: 3500 kg Gereedschapsnorm: D
Torentje materiaal: HT300 & 2CR13
Markeren:

41 Stations High Speed Tablet Press

,

295200 PCS/H Rotary Tablet Press Machine

,

11Kw Motor Power Pharmaceutical Tablet Press

GZP570 -41 High Speed Rotary Tablet Press Machine

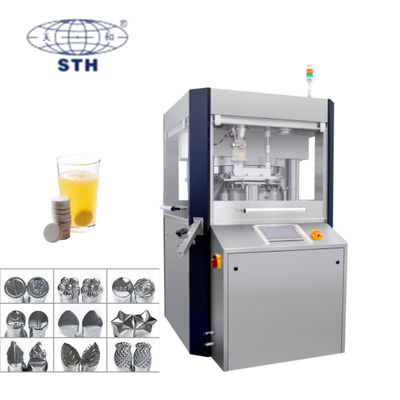

41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 0
Application

This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.

Key Features
  • Advanced Pressure System: Dual pressure forming with main and pre-pressure ensures tablet weight accuracy and hardness stability.
  • High Production Capacity: 450,000 tablets/hour maximum output with 103m/min turret linear speed.
  • Precision Pressure Monitoring: Pressure sensor with digital display and emergency stop protection.
  • Automated Lubrication: Electric lubrication system with adjustable frequency for optimal performance.
  • Intelligent Control: Programmable controller with color touch screen interface for parameter adjustment.
  • Comprehensive Protection: Multiple safety features including oil level monitoring and emergency stop.
  • Advanced Feeding System: Double impeller feeding with material level sensor for consistent performance.
  • Premium Materials: Military-grade copper track and Japanese-cast components for durability.
  • Precision Engineering: Machining center processed parts for operational stability.
  • High-Strength Design: 100KN main pressure capacity for traditional Chinese medicine tablets.
Technical Specifications
Model GZP-41
Number Stations 41
Tooling Standard D
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) 25 (Round/Irregular)
Max Filling Depth (mm) 20
Max Tablet Thickness (mm) 10
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 295,200
Motor Power (kw) 11
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
Detailed Features

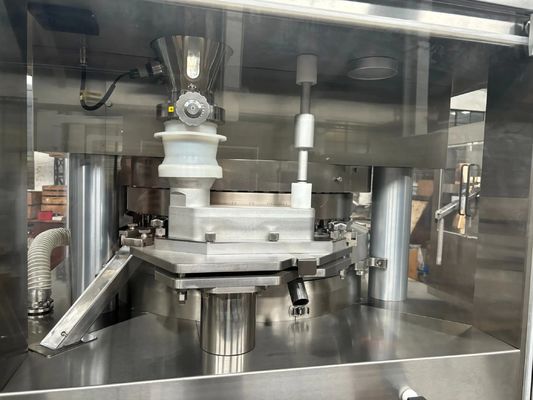

41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 1
Delta 10 inch Color Touch Screen
  • Displays real-time working pressure, speed, and output data
  • 3-level management authority with electronic signature (CFR21)
  • Remote access capability
  • Formula management system
  • Handwheel-free operation with rich interface

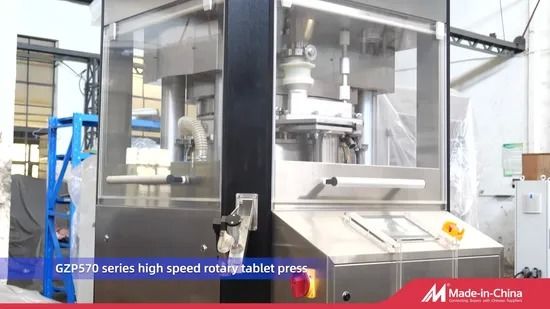

41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 2

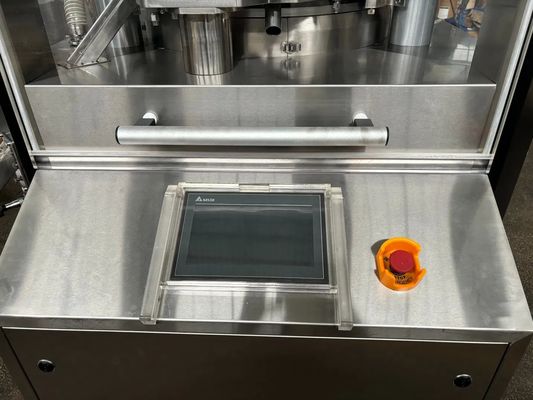

Operating Console

Handwheel-free control with automatic adjustment of main pressure, pre-pressure, and filling volume via touch screen.

41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 3
Power System
  • 11kw ABB main motor
  • High-precision reducer for stable torque output
  • Premium electrical components (Delta, Schneider)
41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 4
Lubrication System

Dual lubrication with oil for punches/tracks and grease for shafts/bearings.

41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 5
Turret Construction
  • Three-part structure with HT300 & 2Cr13 materials
  • Hardened wear-resistant surface
  • Upper/lower punch dust protection
  • Fully enclosed working turret
41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 6
Force Feeder System

Stable direct-mounted design with double blade wheel feeding for consistent material distribution.

41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 7
Special Hopper Design

Rotary valve controlled powder flow for precise material handling.

Packaging & Shipping
41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 8
  • Export-standard wooden packaging included
  • 15-45 working days delivery time
  • Multiple transport options: SEA, AIR, EXPRESS
After Sales Service
  • Professional installation and commissioning services
  • On-site engineer support available
  • Comprehensive technical training provided
Certifications
41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 9
Company Profile
41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power 10

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer of pharmaceutical processing machines with over 30 years of experience, exporting to 70+ countries. We offer complete in-house manufacturing from casting to assembly and provide customized solutions based on customer requirements.
