GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity

China GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity leverancier
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity leverancier GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity leverancier GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity leverancier GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity leverancier GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity leverancier GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity leverancier

Grote Afbeelding :  GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity

Productdetails:

Certificering: CE Certified, GMP Compliant, ISO Certified, CE, GMP, ISO,EAC

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal: 1
Prijs: 35000
Contact
Gedetailleerde productomschrijving
Model nr.: GZP55 Materiaal: Roestvrij staal
Hoofddruk: 100kn Onderdruk: 20kn
Besturingssysteem: PLC en touchscreen Voedingsapparaat: Krachtvoeder
smerend systeem: Automatisch Smeringssysteem Motorvermogen: 11 kW
Maximale tabletdiameter: 25 mm Productiecapaciteit: 396000pcs/h
Max torentje snelheid: 60r/min Max vuldiepte: 15 mm
Max tablet dikte: 6 mm Totale maat: 1370*1170*1800mm
Machinegewicht: 3200 kg
Markeren:

100kN Main Pressure Rotary Tablet Press

,

20kN Pre-Pressure Tablet Press Machine

,

396000PCS/H Production Capacity High Speed Tablet Press

GZP55 Series High Speed Rotary Tablet Press Machine
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 0
Application

This double-sided rotary tablet press machine processes granular materials into round, irregular, or double-side engraved tablets. It serves pharmaceutical, chemical, food, and electronic industries.

Key Features
  • High-speed operation with multiple punches and double press rollers for mass production
  • Stainless steel construction with hardened rotary turret surface for wear resistance (GMP compliant)
  • Precision tablet pressing system with twice compression forming for consistent weight
  • Double impeller force feeder improves granule flow and filling accuracy
  • Automatic central lubrication system extends machine lifespan
  • Oil-proof, dust-proof, and noise-proof design
  • Overpressure protection prevents punch damage
  • PLC and touch screen control for easy operation
  • Optional capability for double-layer tablet production
Technical Specifications
Model GZP-35 GZP-43 GZP-51A GZP-51B GZP-55
Number of stations 35 43 51 51 55
Tooling Standard D B BB ZP BBS
Max Tablet Diameter (mm) 25 (round)
25 (irregular)		 18 (round)
19 (irregular)		 13 (round)
16 (irregular)		 13 (round)
16 (irregular)		 11 (round)
13 (irregular)
Max Filling Depth (mm) 20 18 15 15 15
Max Production Capacity (pcs/h) 252,000 309,600 367,200 367,200 396,000
Motor Power (kw) 7.5
Machine Weight (kg) 3200
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 1

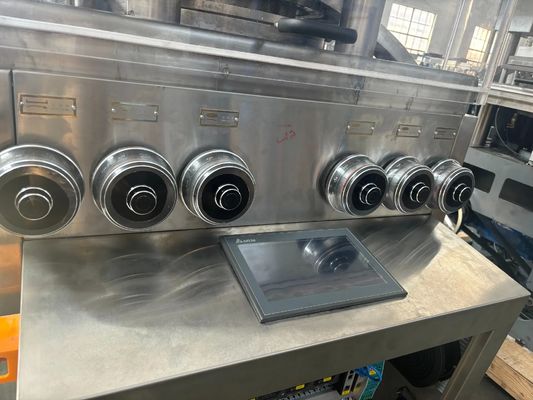

Delta 10-inch Color Touch Screen
  • Displays real-time working pressure, speed, and output data
  • 3-level management authority
  • Optional electronic signature CFR21 compliance
  • Remote access capability
  • Single value pressure display
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 2
Electrical System
  • Uses premium Chinese components (Delta, Delixi)
  • Advanced tableting system with twice compression forming
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 3
Automatic Lubrication System
  • Fully lubricates pressure wheel, track, and punching rod
  • Includes machine cooling fan
Protection Functions
  • Window switch
  • Motor overload protection
  • Voltage abnormal alarm
  • High temperature alarm
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 4

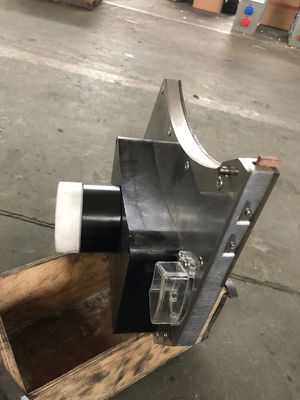

Feeder Device
  • Double impeller type force feeder improves granule flow and filling precision
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 5

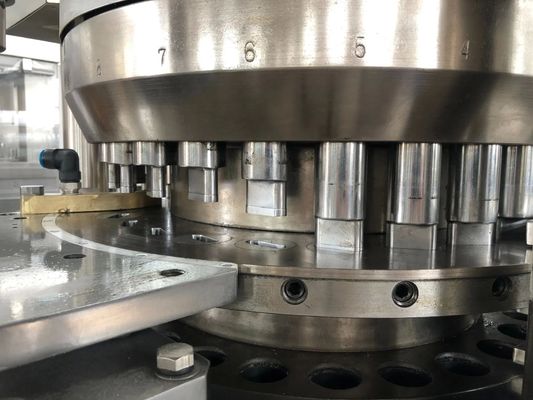

Punches & Dies (Customizable)
  • TSM-Tooling standard compliant
  • Available in various shapes: round, irregular, concave, bevel-edged, etc.
  • Material options: S7/D2, DC53, 6CrW2Si, GCr15
Packaging & Shipping
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 6
  • Export-standard wooden packaging (free of charge)
  • 15-45 working days delivery time
  • Shipping options: SEA, AIR, EXPRESS
Frequently Asked Questions
Q: Where is your factory located?

A: Our factory is in Shanghai's Chongming District. We welcome visits with prior arrangement.

Q: How can I verify machine suitability for my product?

A: Send samples for testing - we'll provide videos, photos, or live demonstrations.

Q: How can I trust your company for first-time business?

A: We recommend using Trade Assurance Service to protect your transaction.

Q: What after-sales support do you provide?

A: 1-year warranty with 24-hour technical support and lifetime service commitment.

Q: How to contact you?

A: Use the contact information on this page (email, WeChat, WhatsApp, phone).

Certifications
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 7
Company Profile
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 8 GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 9

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer with 30+ years experience, exporting to 70+ countries. We provide complete solutions for pharmaceutical and food processing equipment.

As a high-tech enterprise, we control all manufacturing processes from casting to final assembly. We emphasize quality control and customized solutions based on customer requirements analysis.

Our machines feature:

  • Omron PLC control systems
  • Advanced technology integration
  • Precision engineering
  • Reliable performance
  • Easy operation and maintenance
